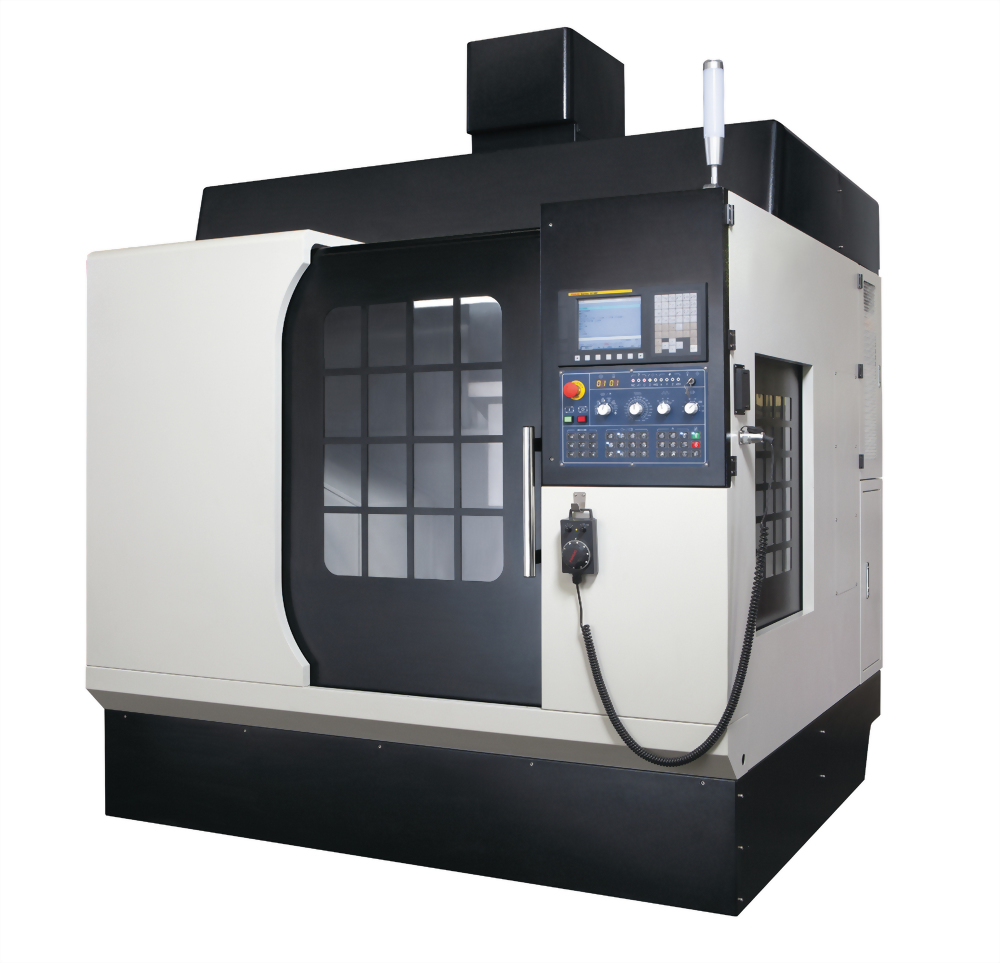

H56X(advanced)
● Rigid and High Precision Machine Structure
H56X structure provides outstanding stiffness, precision and rigidity.
The base is same as coordinate measuring machine, granite base, which is not affected by temperature changes.
● 42,000rpm High Speed and Smart Spindle
H56X intelligent high speed spindle can apply with smart machining and industry 4.0, spindle has TMS temperature monitoring system, ASS analogue sensor system, ITC heat control and 3D acceleration sensor system. It provides stable torque and minimizing thermal distortion at high spindle speeds and eliminates machining vibration.
● Siemens Hi-TECH Control Features
H56X installed with the most advanced control system Siemens, it provides updated operation features, and complete machining functions. With a comprehensive range of technology and measurement cycles, create a unique functions for the demanding and milling request.
H56X structure provides outstanding stiffness, precision and rigidity.
The base is same as coordinate measuring machine, granite base, which is not affected by temperature changes.
● 42,000rpm High Speed and Smart Spindle
H56X intelligent high speed spindle can apply with smart machining and industry 4.0, spindle has TMS temperature monitoring system, ASS analogue sensor system, ITC heat control and 3D acceleration sensor system. It provides stable torque and minimizing thermal distortion at high spindle speeds and eliminates machining vibration.
● Siemens Hi-TECH Control Features
H56X installed with the most advanced control system Siemens, it provides updated operation features, and complete machining functions. With a comprehensive range of technology and measurement cycles, create a unique functions for the demanding and milling request.
| Item | unit 單位 | H56X(advanced) | |
| X/Y/Z Travel | mm | 600 × 500 × 350 | |
| Distance From Spindle Nose To Table | mm | 150-500 | |
| Work Table Size(L×W) | mm | 700 × 500 | |
| Max. Work Table Load | kg | 120 | |
| Controller | Simens 840 | ||
| Direct Driven RPM | rpm | 42000 | |
| Arm Type | position | 16 | |
| Motor Power | kW | 13.5 | |
| Tool Holder Type | HSK-E40 | ||
| Standard Air Pressure | kg/cm² | 6 | |
| Machine Weight | kg | 5000 | |
| Floor Dimension | mm | 2700 × 2700 × 2500 | |
