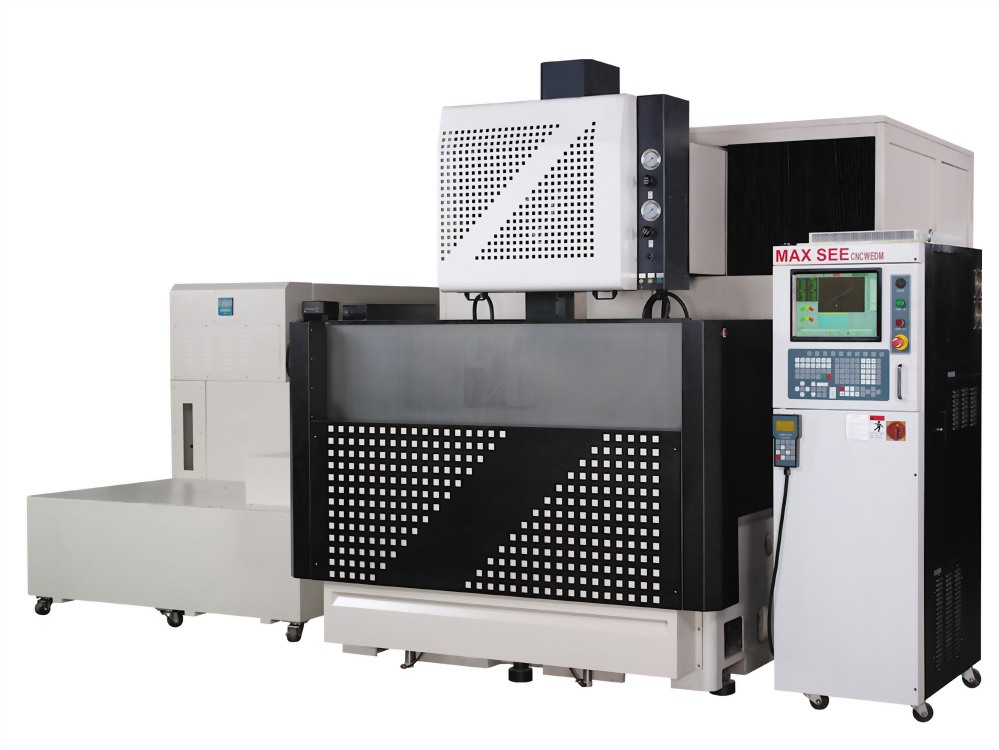

SW1270

● Rigid construction
Rigid structure and fixed table design with FC35 fine grain castings reduce thermal distortion over long hour used and eliminate vibration during machining.

● AWT System (For BSW Series)
The threading with water jet can pass through the workpiece more than 200 mm thick. The hot-melt method is used to cut the wire, which creates the threading efficiency.

● User Friendly Interface
Uses Windows CE operating system, each operating module has multiple functions and features a 15-inch full-color touch screen for easy and convenient operation.

● High Precision Machining
The corner aid control module can set the corner machining conditions and weaken the speed, and execute in segments.
Exclusive dual trace system by 1μm linear scales and encoder, for high precision machining.

● Linear Motor (Optional)
Comparing with tradition ball screw structure wire machine, linear motor (Optional) has longer time accuracy persistence. Advantage of fast servo feedback, low wear, no gap and no temperature changes, which can improve the machining efficiency. With 0.05μm high resolution optical scales, it can reach the high precision result in fine machining.

model unit SW1270
X/Y/Z Travel mm 1200 × 700 × 350
U/V Travel mm 150 × 150
Work Table Size(L×W) mm 1530 × 970
Max. Work  Piece Dimension(L×W×H) mm 1600 × 1000 × 310
Max. Work  kg 1500
X/Y Feed Rate mm/min 800
Wire Diameter mm Ø 0.15-0.3
Wire Tension gf 2000
Wire Spool Weight kg 5/8/16(option)
Max. Taper Angel/Workpiece Thinkness mm ±15/60
Max. Wire Feed Rate mm/sec 400
Machine Net Weight kg 7000
Machine Dimesion mm 5300 × 5000 × 2800
FLUID SUPPLY UNIT
Filler Element Paper
Lon Exchange Resin Liter 10
Conductivity Control Auto
Fluid Temperature Control Auto
Tank Capacity Liter 4800
CNC Unit Unit
POWER INPUT 3phase, 220V/380V/15KVA
CIRCUIT SYSTEM Amp 30
OPERATION SYSTEM Window CE
DATA INPUT keyboard, USB,Ethemet, RS-232
DISPLAY 15"LCD Full color touch screen
CONTROL AXIS X,Y,U,V,Z(5axis )
MEMORY CAPACITY MB 512
MIN. COMMAND UNIT mm 0.001
MAX.COMMAND VALUE mm ±9999.999
OFF TIME SELECT 1-50
