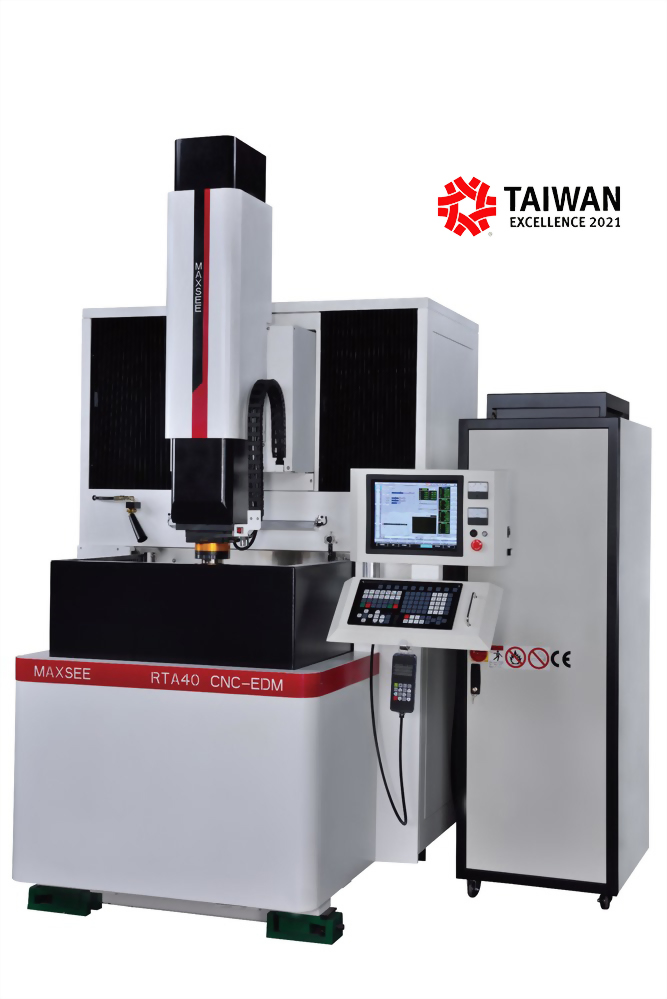

RTA40
● Precision Measured Machine structure
Rigidity and stability, AC servo-motor drive leads to higher machining speed and more efficient movement.
● Elevating Fluid Tank
A variable elevating design can boost the mold setup speed.
● Advanced EDM Technology Machining
MAXSEE adopts the latest EDM Technology for machining with graphite electrode and hard alloy steel machining, which is able to reduce electrode wear by 30% while increasing machining efficiency by up to 2.5times.
Rigidity and stability, AC servo-motor drive leads to higher machining speed and more efficient movement.
● Elevating Fluid Tank
A variable elevating design can boost the mold setup speed.
● Advanced EDM Technology Machining
MAXSEE adopts the latest EDM Technology for machining with graphite electrode and hard alloy steel machining, which is able to reduce electrode wear by 30% while increasing machining efficiency by up to 2.5times.
| Item | Unit | RTA40 | |
| X/Y/Z Travel | mm | 400 × 300 × 400 | |
| Work Table Size(L×W) | mm | 740 × 390 | |
| Max. Work Piece Dimension(L×W×H) | mm | 800 × 600 × 400 | |
| Max. Work Piece Weight | kg | 800 | |
| X/Y Feed Rate | mm/min | 1000 | |
| X/Y/Z Axis Servo | AC servo | ||
| Machine Net Weight | kg | 3500 | |
| Machine Dimension | mm | 2064 × 2030 × 3200 | |
