CNC-C54

● Sophisticated machine structure design
Allocating 1 micro optical scale feedback system on X, Y and Z axis, assure the machine’s accuracy. The table surface is heat treatment for high rigidity and long wear resistance. Precision ground ball screws coupled with servo motors in the X and Y axis provide smooth accurate movement and precise repeatability.

● Superior Machining Function
The controller comes with conversational operation. Let users easier understand and set the processing parameter rapidly, including side machining and various machining patterns for orbit machining. Also have special developed ARC-less circuit intensive monitor arc activity and adjust process accordingly.

Item  Unit  C54
X/Y/Z Travel mm 480 × 380 × 185
U Travel  mm 300
Work Table Size(L×W)  mm 850 × 450
Max. Work Piece Dimension(L×W×H)-Flush
mm 1200 × 700 × 380
Max. Work Piece Dimension(L×W×H)-Submerge
mm 1200 × 700 × 340
Max. Work Piece Weight kg 1300
Max. Electrode Weight  kg 180
Distance From Work Table To Electrode Plate
mm 160-645
Max. Machining Current  Amp 75
Power Input KVA 8
Max. Dielectric Level  mm 350
Dielectric Unit Capacity  Liter 340
Fliter  pcs 2
Machine Net Weight  kg 2450
Machine Dimension  mm 2150 × 2150 × 2520

Related Products

CNC-C26

CNC-C26

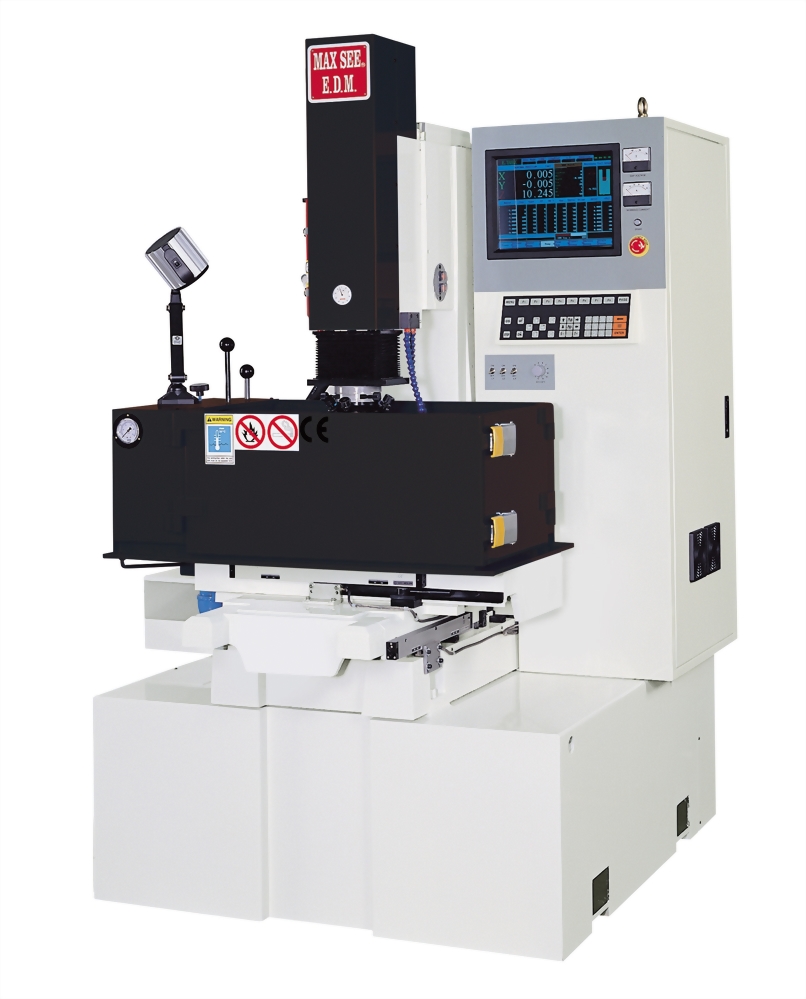

CNC-C36
